Industrial Endoscope Main Unit RS-MU

Product Description

The Video Scope is a compact handheld instrument that allows the user to view applications in restricted spaces that could not normally be seen with the naked eye.

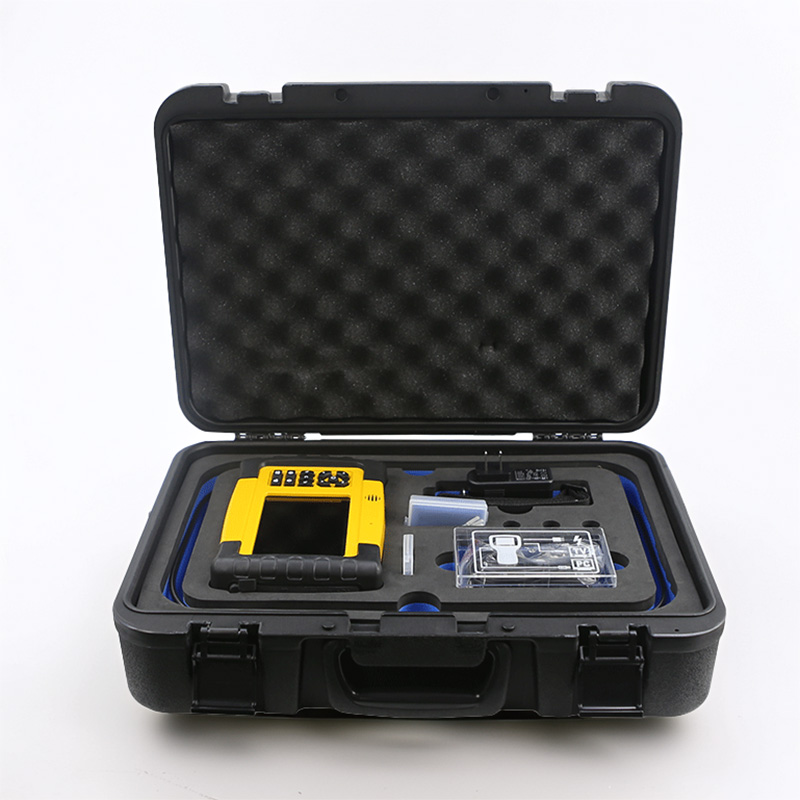

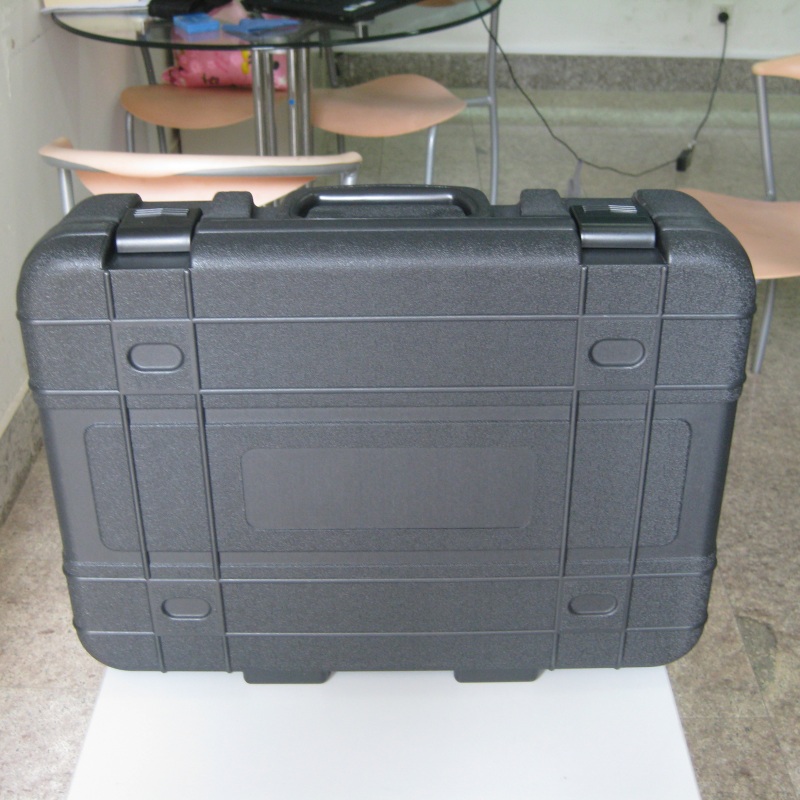

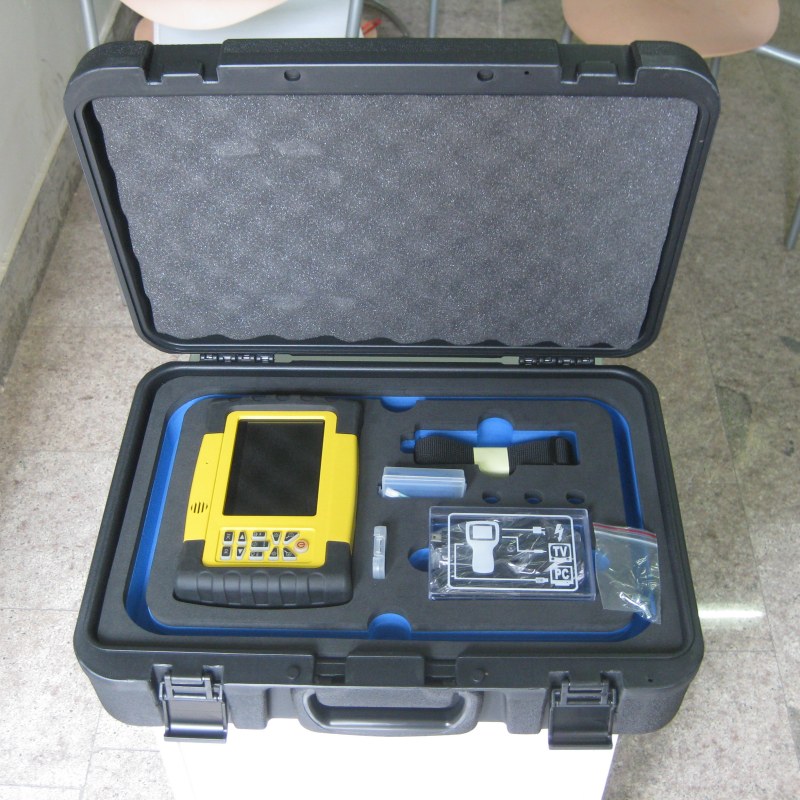

The Video Scope is supplied in a sturdy carrying case and consists of a display unit, insertion tube, main adapter and side view adapter. The display unit, with a 5” wide angle TFT LCD screen, has the capacity of viewing, storing and reviewing photos and video images.

Images can also be displayed directly on a TV screen or stored and transferred to a PC for viewing later. The display unit is powered by rechargeable Li-polymer batteries and charger included.

● 5-inch TFT LCD

5-inch high-definition tempered glass screen

● Waterproof & Shockproof

Features excellent waterproof and shockproof performance; tested to withstand 1.5m drops

● Wireless Application

Supports digital wireless video transmission

● Photo, Video & Storage

Captures photos (640×480) and videos with built‑in storage (includes 2G SD card)

● Zoom & Mirror Function

2x digital zoom; supports horizontal and vertical image mirroring

● Photo Comparison

Displays two photos side by side for simultaneous comparison and analysis

● AV Output

Connects to external TVs or monitors for photo and video playback

● High-Brightness Light with Real-Time Adjustment

LED brightness can be adjusted in real time via the knob below the USB port

● Eco-Friendly Battery, Long Battery Life

Built-in rechargeable lithium battery; fully charged in 2 hours for up to 4 hours of continuous use

● Auto Power-Off, Energy Saving

System can be set to auto power-off after 5, 10, 15 or 30 minutes of inactivity

Preparation for use

On first use it is important that the SD card is inserted as Fig.1 shown.

  (Fig.1)

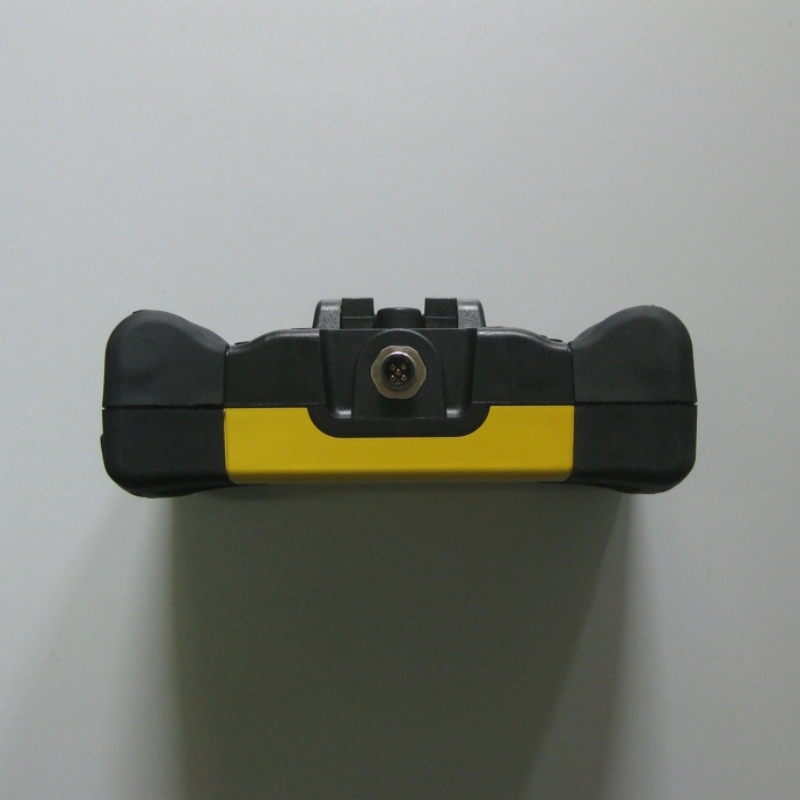

Connect the insertion tube to the  display Unit as shown in the figure and tighten the locking collar: Fig.2

(Fig.2)

Press the POWER button for 3-5 seconds to turn the display unit on. The Start-up screen is shown briefly followed by the status screen for five seconds. Fig.3

(Fig.3)

Technical data
