The two-way articulating industrial borescope is a compact, high-precision inspection tool with dual-directional bending, ideal for visual inspections in confined or complex spaces across industries such as aviation, automotive repair, and infrastructure maintenance.
Specifications
| Probe Diameter | Probe Length | Articulation Angle |
| 4 mm (0.157 in) | 1m (3.28 ft) | 2-way ±120° |
| 6 mm (0.236 in) | up to 3m (9.84 ft) |
Product Description

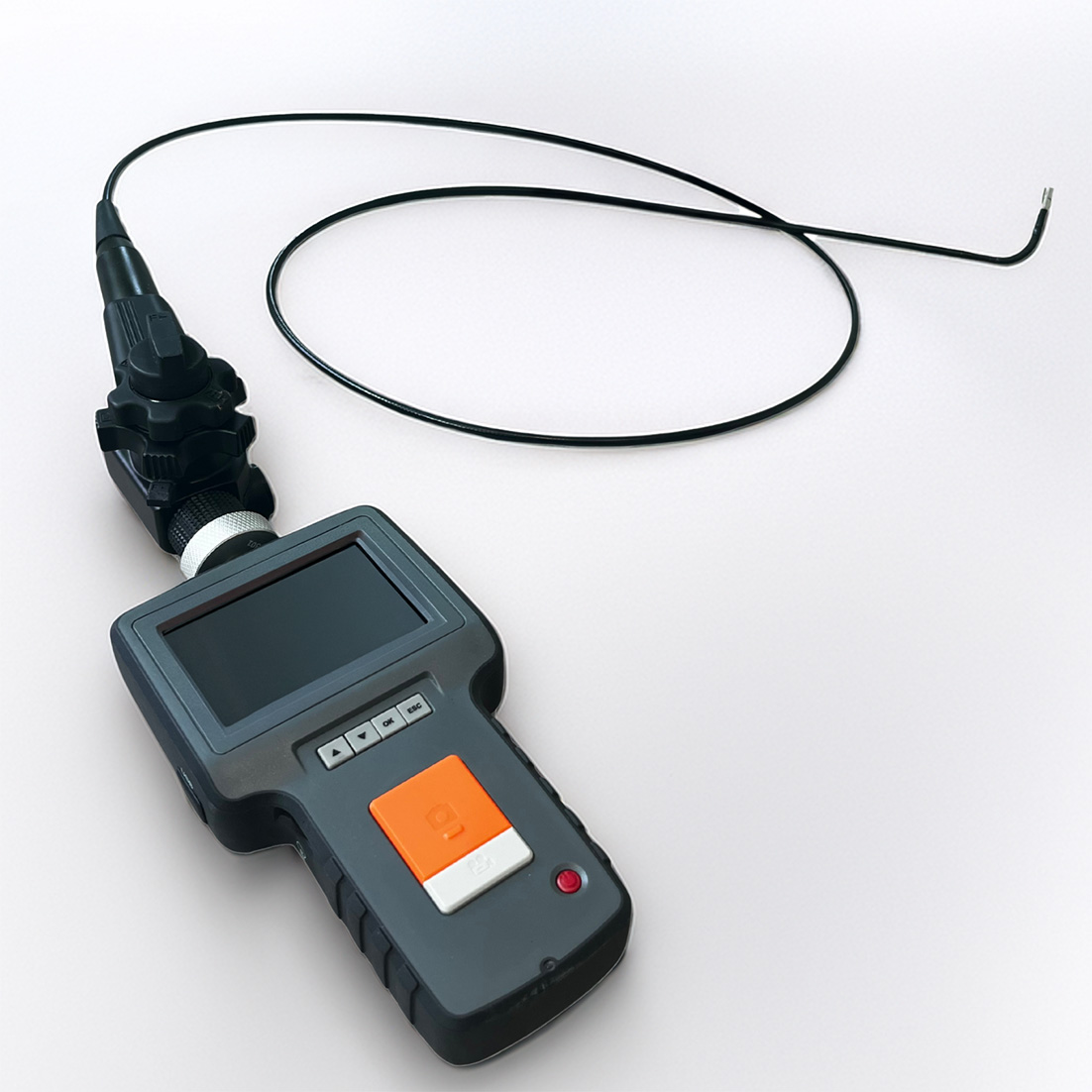

Our Two-Way Articulating Industrial Endoscope is engineered for precision visual inspections in narrow, concealed, or hazardous environments. Its dual-directional articulation allows the probe tip to flexibly bend in two directions, enabling clear, multi-angle observation of internal components.
It features a high-resolution display, photo/video recording, and a durable, UV-resistant design, making it ideal for routine maintenance, defect detection, and non-destructive testing across various industries. Multiple diameters and lengths are available to suit different inspection needs.

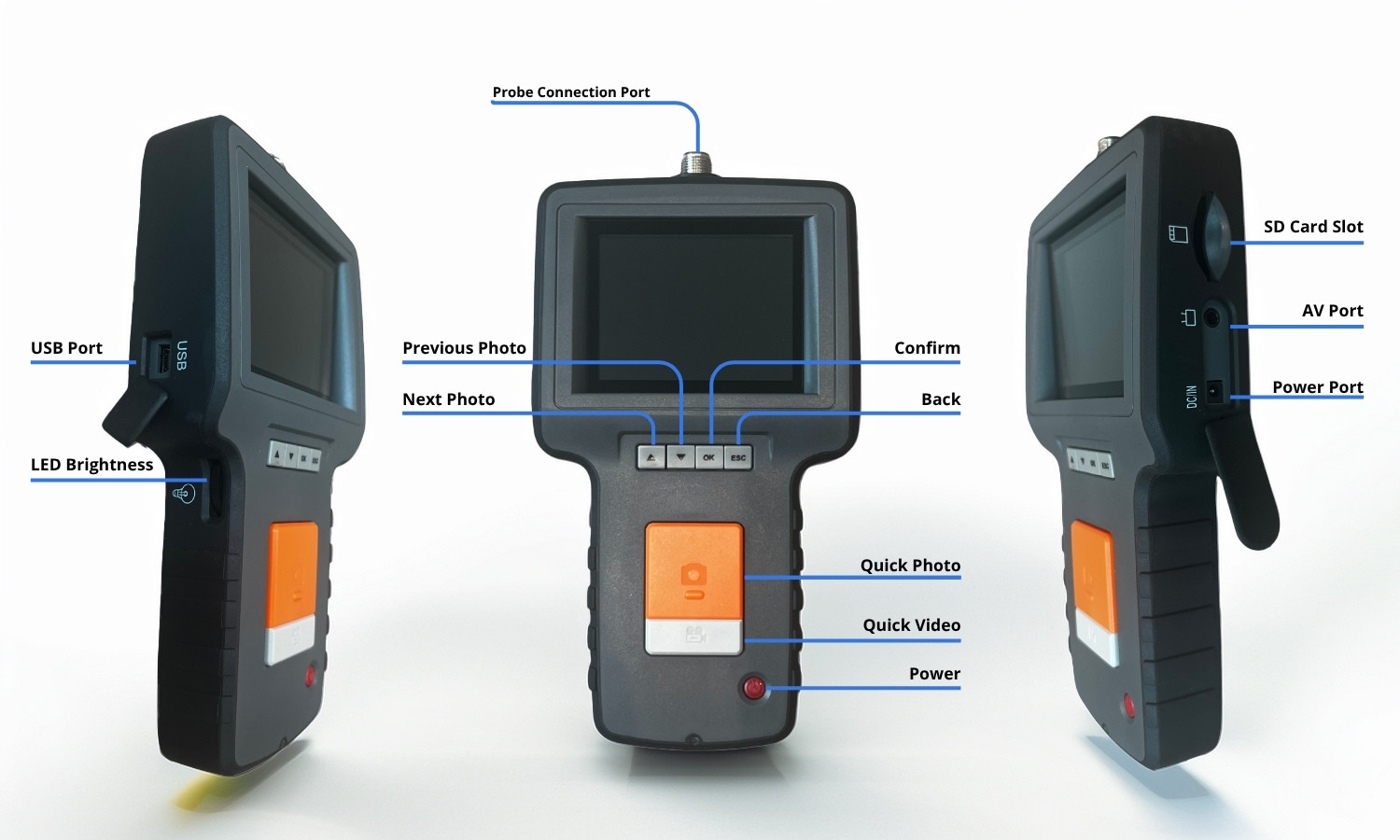

Control Unit
- Display: 3.5 inches TFT LCD display with reinforced glass and UV-resistant design.
- Battery: 3.7V lithium battery, 4 hours of continuous operation on a full 2-hour charge.
- Image Format: JPEG (640x480 px)
- Video Recording Format: ASF (320x240px)
Insertion Probe
- Probe Diameter: 4mm (0.157 in) or 6mm (0.236 in)
- Probe Length: 1m (3.28 ft) / 2m (2.56 ft) / 3m (9.84 ft)
- Camera: 60° FOV, 15-60mm focus with 4 LED light source
- Protection Level: IP67 Waterproof up to 3.3FT (1M) / Dustproof
- Handle Rotation: ±165° rotatable handle

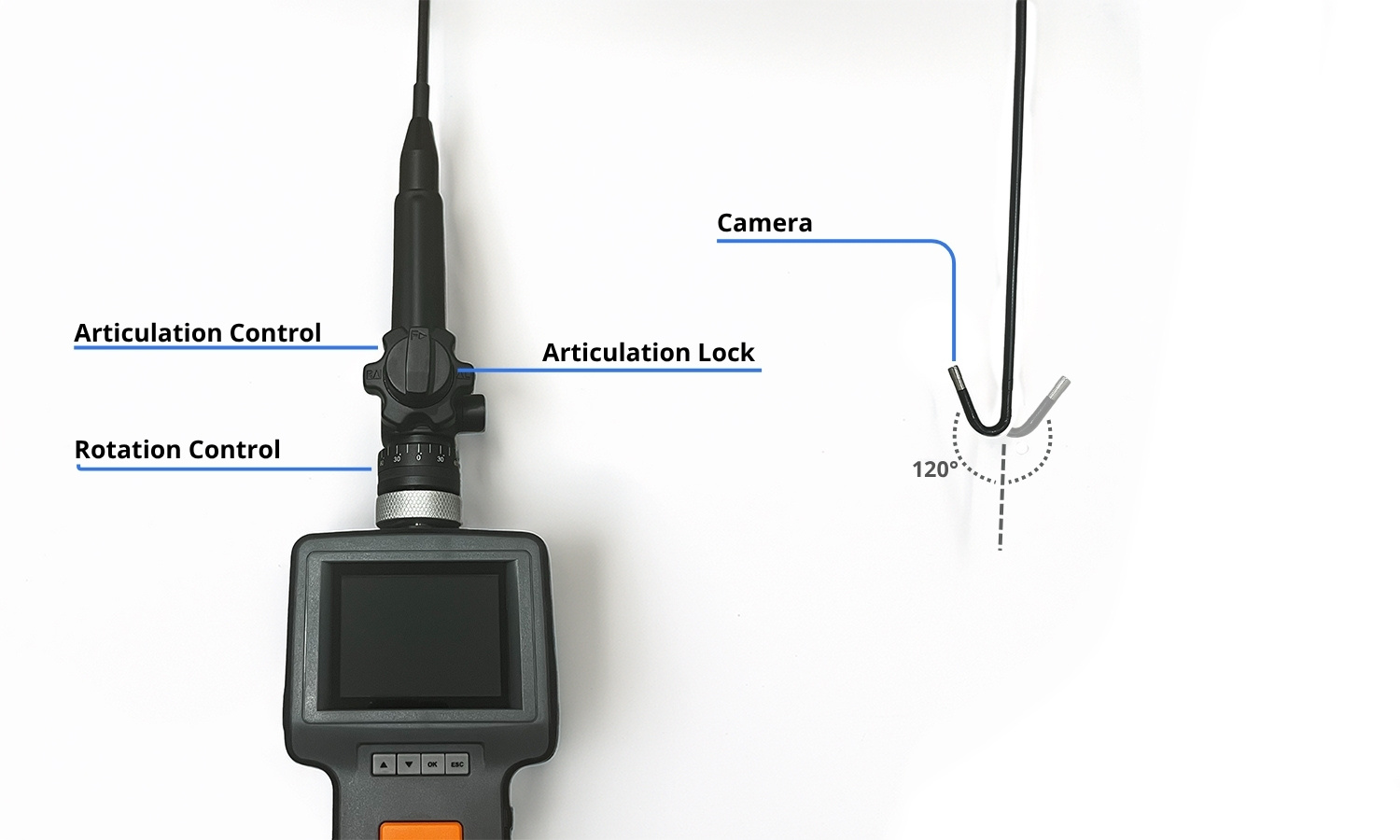

- Tip Articulation: ±120° two-way articulation
Applications
- Automotive and Machine Maintenance
- Piping Inspection, Plumbing
- Construction
- Aerospace and Marine
Specifications
| Control Unit | |
| Display | 3.5-inch TFT display with reinforced glass and UC protection |
| Resolution | 320 x 240 px |
| Battery | 3.7V lithium battery |
| Power Source | DC 5V |
| Interface |
Mini‑USB 1.1 and AV Output |
| Video Ourput Format |
NTSL and PAL |
| Storage Medium |
SD Card (up to 2G) |
| Compression Format |
MPEG4 |
| Image Storage Format |
JPEG (640x480 px) |
| Video Recording Format |
ASF (320x240px) |
| Language |
English + one other language (customizable) |
|
Insertion Probe |
|
| Probe Length |
up to 3m(9.84 ft) |
| Probe Diameter |
4mm(0.157 in) / 6mm(0.236 in) |
| Articulation Direction |
2-way |
| Articulation Angle |
±120° |
| Rotation Angle |
±165° |
| Light Source |
4x white LED |
| Camera FOV |
60° |
| Viewing Diameter |
15-50mm |
| Image Sensor Type |
CMOS |
| Video Resolution |
320 x 240 px |
| Image Resolution |
640 x 480 px |
| Frames per Second |
30 fps |
