ME-Series is professionally designed to help Inspector working under the sun.This unique sun-shade design capable to block the sunlight by 50%, In order to provide sharp, clear image on the system.
In addition, protecting monitor from bumps& scratches.
Product Description
The Video Scope is a compact handheld instrument that allows the user to view applications in restricted spaces that could not normally be seen with the naked eye.

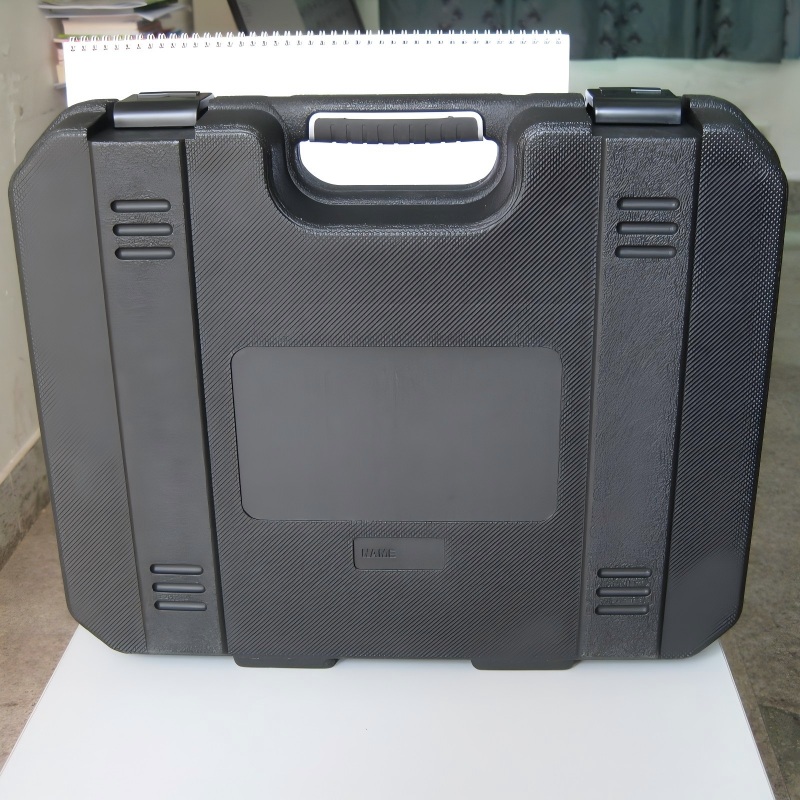

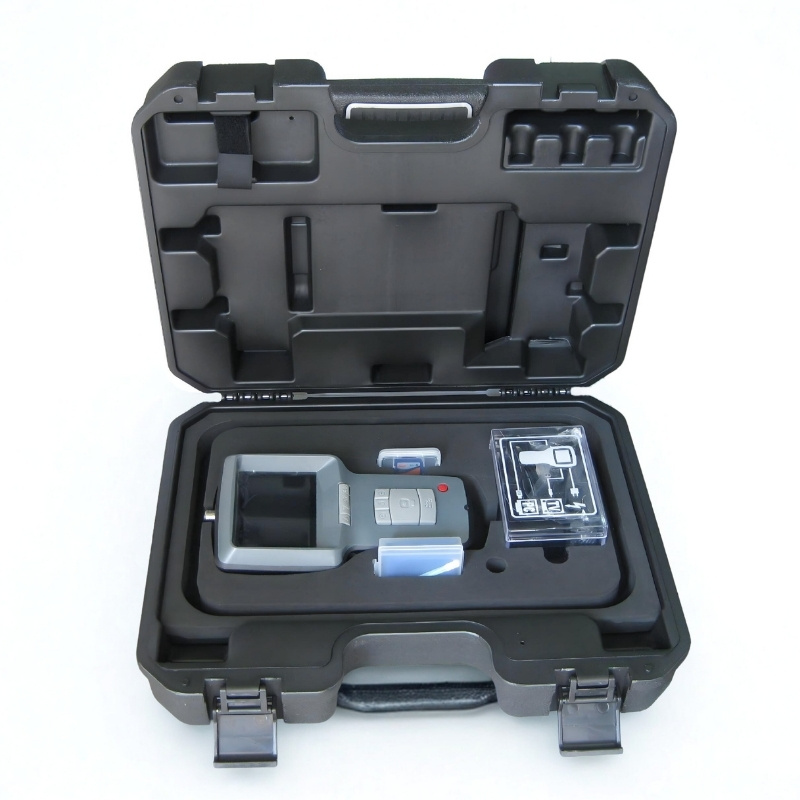

The Video Scope is supplied in a sturdy carrying case and consists of a display unit, insertion tube, main adapter and side view adapter. The display unit, with a 3,5” wide angle TFT LCD screen, has the capacity of viewing, storing and reviewing photos and video images. Images can also be displayed directly on a TV screen or stored and transferred to a PC for viewing later.
The display unit is powered by rechargeable Li-polymer batteries and charger included.
Preparation for use

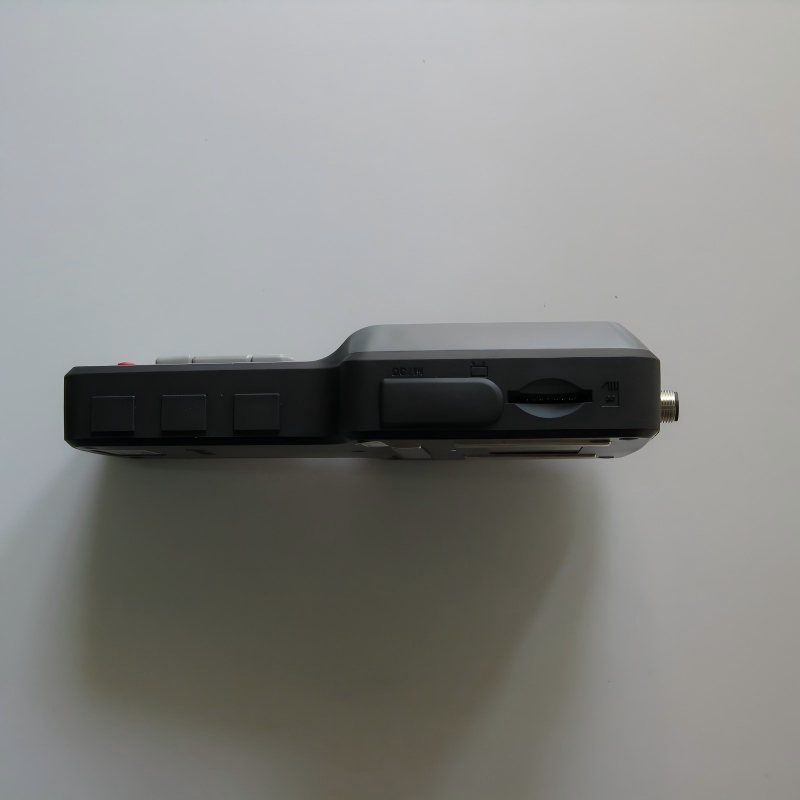

On first use it is important that the SD card is inserted as Fig.1 shown.
(Fig.1)
Connect the insertion tube to the display Unit as shown in the figure and tighten the locking collar: Fig.2
(Fig.2)
Press the POWER button for 3-5 seconds to turn the display unit on. The Start-up screen is shown briefly followed by the status screen for five seconds. Fig.3
(Fig.3)
Technical data
| Display Unit | |
| Power | DC5V |
| Display | 3.5” TFT LCD Monitor 320 X 240 Pixels |
| Interface | Mini USB 1.1/AV Out |
| Battery(not user serviceable) | Rechargeable Li-Polymer Battery (3.7V) |
| Power Adapter | 100 ~ 240VAC in / 5.5V DC Out |
| Video Out Format | NTSC & PAL |
| Storage | SD card (Up to 32GB) |
| Compression Format | MPEG4 |
| Still Image Storage Format | JPEG (640 X 480) |
| Video Recording Format | ASF (640 X 480) |
| Working & Storage/Battery charging temperature range | - 20℃ to 60℃ / 0℃ to 40℃ |
| Functions |
Snapshot, Video Recording, Picture & Video review on LCD screen, TV Out, transfer of picture & video from SD care to PC Digital Zoom Reflecting. |
ME-Series is professionally designed to help Inspector working under the sun.This unique sun-shade design capable to block the sunlight by 50%, In order to provide sharp, clear image on the system. In addition, protecting monitor from bumps& scratches.
Details
Flexible video borescope, functioning as a micro digital camera. It is an ideal tool for Non-Destructive Testing (NDT) and Remote Visual Inspection (RVI), and a must-have instrument for aero-engine inspection. Equipped with 4 LED lights, it features a 5-pin USB port that allows users to easily transfer digital videos and photos to computers or laptops. It has a built-in 512MB SD memory. This is a truly universal NDT/RVI system that captures digital video and photo images, which can be easily transferred to computers.
Details
The RS Series endoscope, designed specifically for military and emergency applications, features exceptional waterproof and shockproof capabilities. Its 5-inch LCD display delivers crystal-clear images, providing an excellent user experience that enables you to perform inspections with ease in complex environments such as turbine engines and pressure vessels.
Details
