The four-way articulating industrial borescope is a compact and durable inspection device featuring flexible probe movement in four directions. It delivers clear imaging, easy operation, and multi-angle observation capabilities, making it ideal for precise inspections in aerospace, automotive maintenance, construction, and other industrial applications.

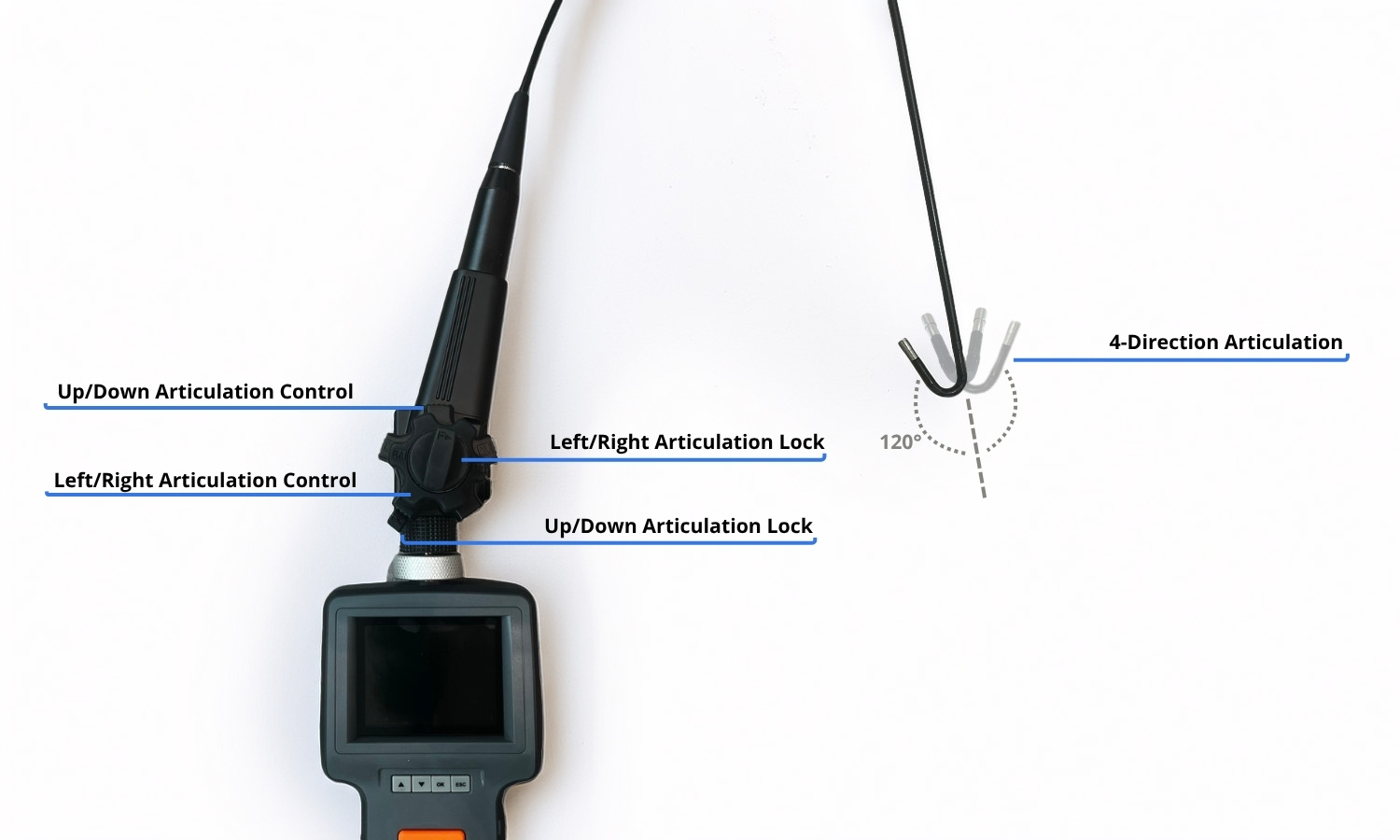

- 4-way up, down, left and right articulation
- Probe as thin as 6 mm in dismeter, up to 3 m in length
- 3.5-inch monitor with reinforced glass and UV-resistant design
- IP67 Waterproof up to 3.3FT (1M) / Dustproof
Specifications
| Diameter | Length | Articulation Angle |
| 6 mm (0.236 in) | up to 2m (2.56 ft) | 4-way ±120° |
| 7.5 mm (0.295 in) | up to 3m (9.84 ft) |
Product Description
Our Four-Way Articulating Industrial Borescope is designed for high-precision visual inspection in confined, hard-to-reach, or high-risk environments. With four-directional articulation—up, down, left, and right—the probe tip provides flexible, all-angle maneuverability for thorough internal observation.
Equipped with a high-resolution display, photo and video capture capabilities, and a rugged, UV-resistant housing, this device is ideal for applications in maintenance, defect detection, and non-destructive testing across a wide range of industries. It is available in multiple diameters and lengths to accommodate various inspection scenarios.
Insertion Probe
- Probe Diameter: 6mm (0.236 in) or 7.5 mm (0.295 in)
- Probe Length: 1m (3.28 ft) / 2m (2.56 ft) / 3m (9.84 ft)
- Camera: 60° FOV, 15-60mm focus with 4 LED light source
- Protection Level: IP67 Waterproof up to 3.3FT (1M) / Dustproof
- Tip Articulation: ±120° four-way articulation

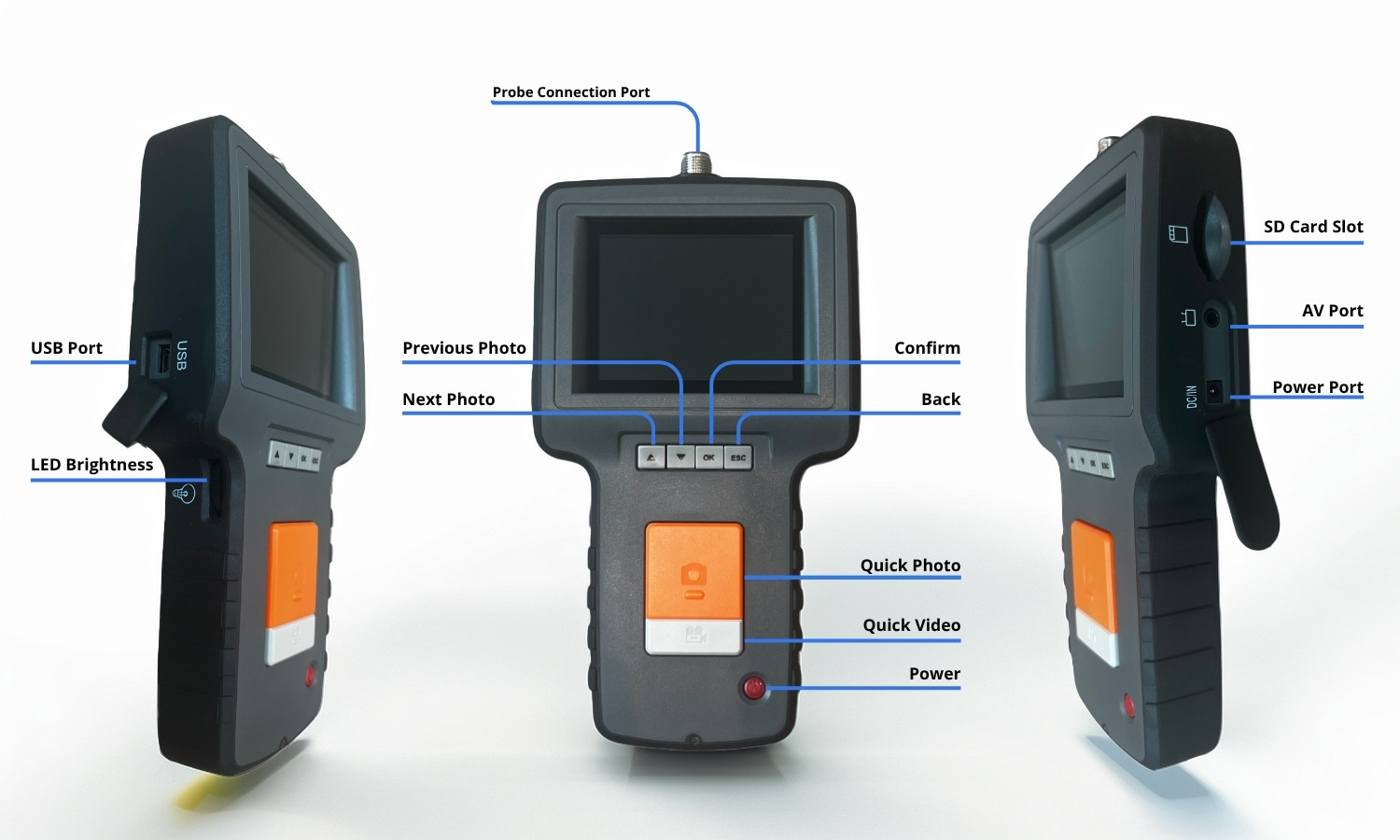

Control Unit
- Display: 3.5-inch TFT LCD screen with reinforced glass and UV-resistant coating for enhanced durability and visibility.
- Battery: 3.7V rechargeable lithium battery supporting up to 4 hours of continuous use after a full 2-hour charge.
- Image Format: JPEG format with a resolution of 640×480 pixels.
- Video Recording Format: ASF format with a resolution of 320×240 pixels.
Applications
- Pipeling and Plumbing Inspection
- Automotive and Machine Mintenance
- Aerospace Maintenance
- Building and Infrastructure Assessment
- Manufacturing Equipment Maintenance
Specifications
| Control Unit | |
| Display | 3.5-inch TFT display with reinforced glass and UC protection |
| Resolution | 320 x 240 px |
| Battery | 3.7V lithium battery |
| Power Source | DC 5V |
| Interface |
Mini‑USB 1.1 and AV Output |
| Video Ourput Format |
NTSL and PAL |
| Storage Medium |
SD Card (up to 2G) |
| Compression Format |
MPEG4 |
| Image Storage Format |
JPEG (640x480 px) |
| Video Recording Format |
ASF (320x240px) |
| Language |
English + one other language (customizable) |
|
Insertion Probe |
|
| Probe Length |
up to 3m (9.84 ft) |
| Probe Diameter |
6mm(0.236 in) / 7.5mm(0.295 in) |
| Articulation Direction |
4-way |
| Articulation Angle |
±120° |
| Light Source |
4 white LED |
| Camera FOV |
60° |
| Viewing Diameter |
15-50mm |
| Image Sensor Type |
CMOS |
| Video Resolution |
320 x 240 px |
| Image Resolution |
640 x 480 px |
| Frames per Second |
30 fps |
