Inline Refractometer - Utility Model Patent

Patent Name

Inline Refractometer for Solution Monitoring in Industrial Automation Systems

Patent Type

Utility Model Patent

Associated Products

Patent Details

This utility model relates to an inline detection instrument designed for real-time solution monitoring in industrial automation environments. The device includes a detection probe and a main detection unit, with the probe comprising a prism seat, prism, lens seat, lens, heat-dissipating light guide tube, and optical fiber.

The design features an integrated mounting slot connecting the prism and lens components, allowing precise alignment. A detection port is positioned at the lower end of the prism seat, and the optical fiber is inserted through a dedicated channel to connect with the prism system. The exterior of the light guide tube is equipped with multiple heat-dissipation fins.

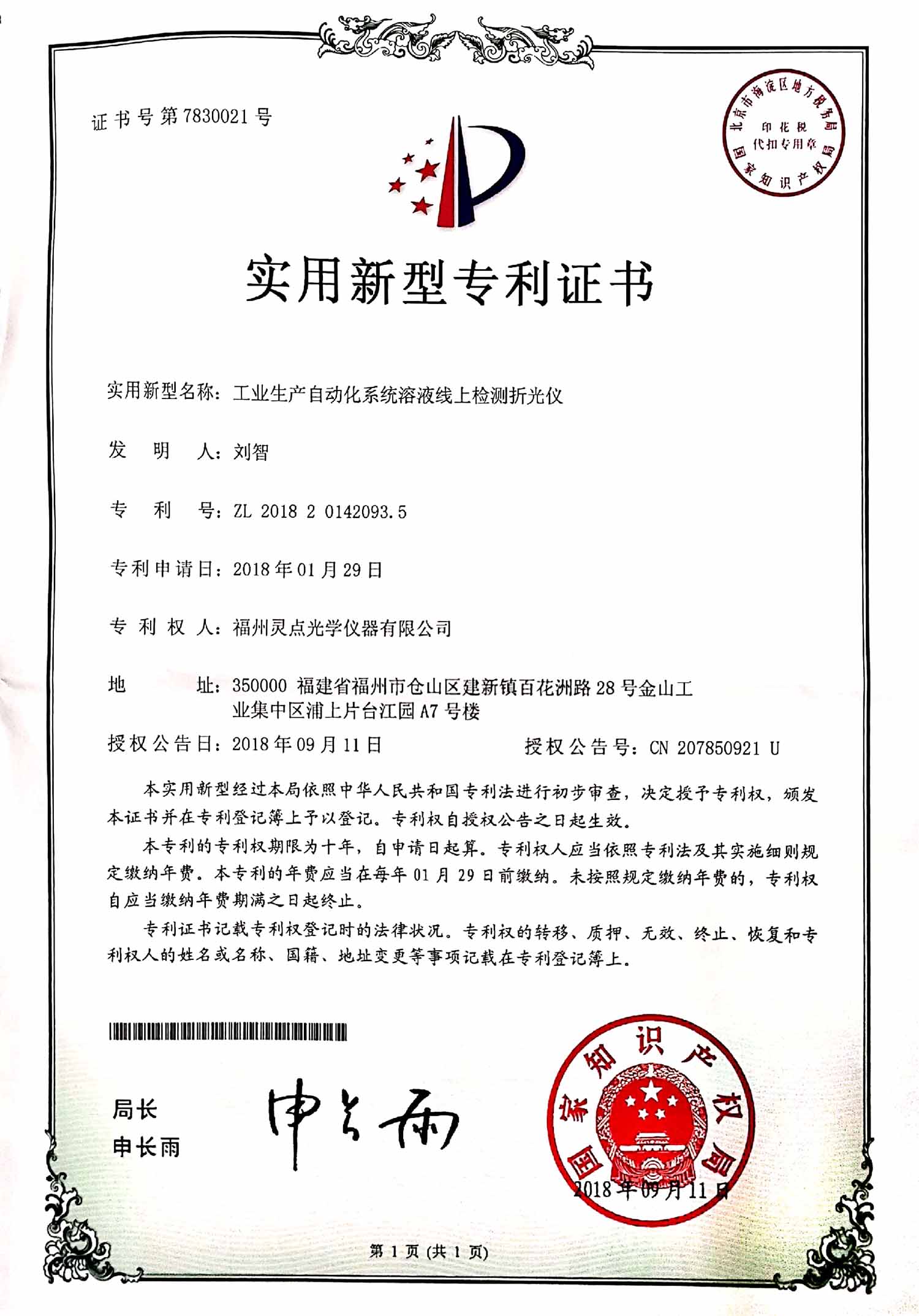

Certificate
